PAL SYSTEM INTERNATIONAL FZCO

پال سیستم

گواهینامه ها و گزارشات آزمایشگاهی بین المللی

DESCRIPTION

TEST METHOD & STATEMENT

LABORATORY

CLASSIFICATION & RESULTS

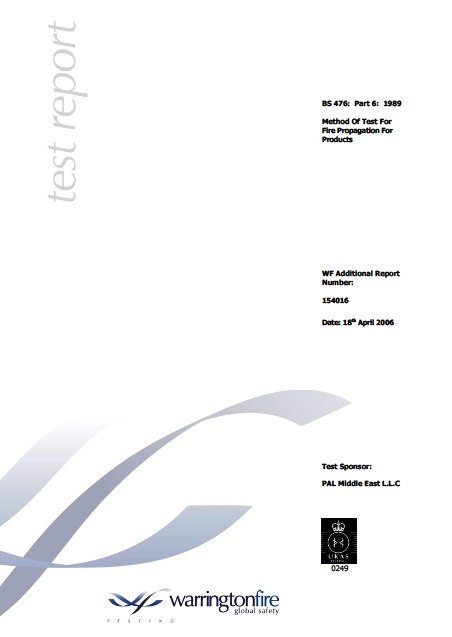

Fire Propagation Index

BS 476 Part 6

Warringtonfire - UK

Class "0"

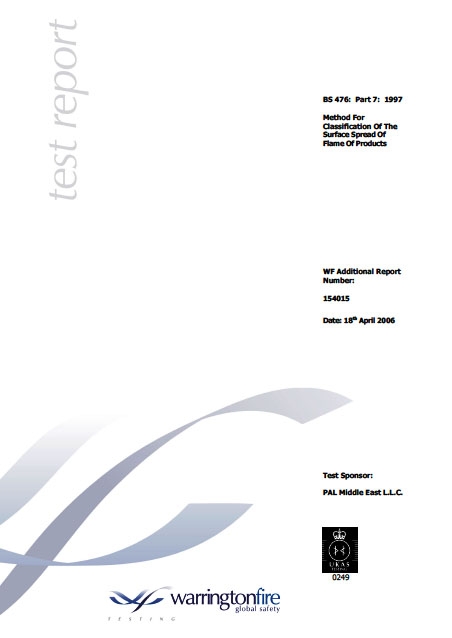

Surfaces Spread of Flame

BS 476 Part 7

Warringtonfire - UK

Class "1"

Certification of Product Listing No. 016

BS 476 Part 6, 7

Warringtonfire - UK, Mideast Global Safety

Class "0"

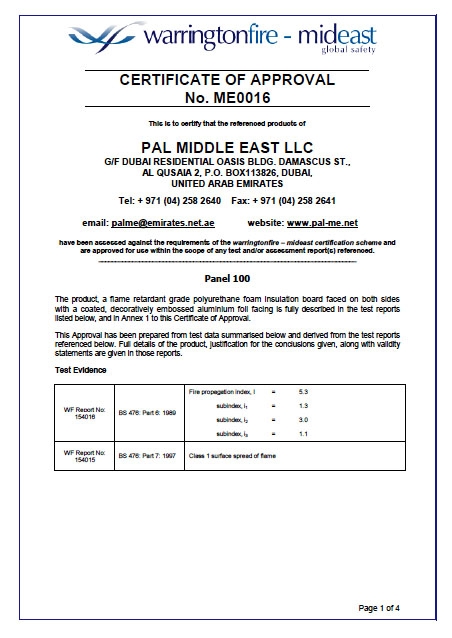

Certificate of Factory Production Control and Product Labels

Certificate of Approval ME0016



Warringtonfire-UK, Mideast Global Safety

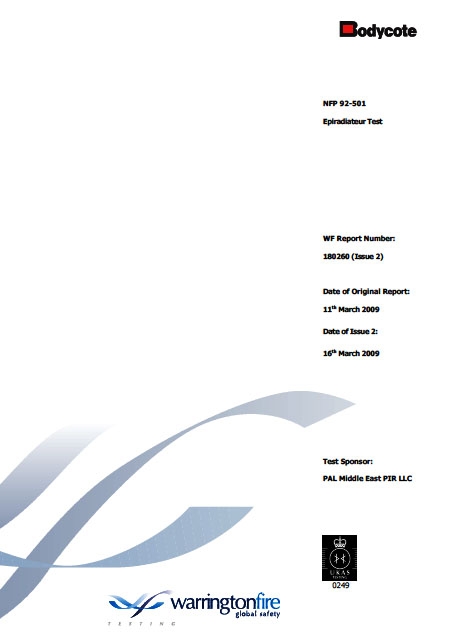

Epiradiateur Test

NFP 92-501

Warringtonfire-UK

(Ministere de l'Industrie et de la Decentralisation)

M1

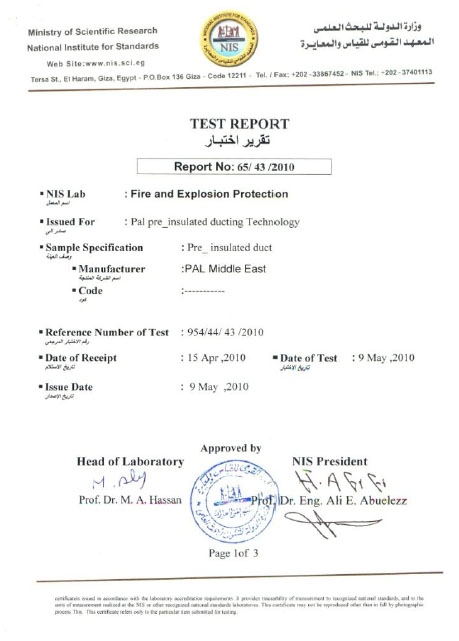

Flame Spread Index

ASTM E-84

NFPA 255
UL 723
NFPA 101 Life Safety Code

ISO 5658-2



Commercial Testing Company - USA

National Institute for Standards - Egypt

Class "A"

Class "1"

Smoke Developed Index

ASTM E-84

NFPA 255
UL 723
NFPA 101 Life Safety Code

Commercial Testing Company - USA

Class "A"

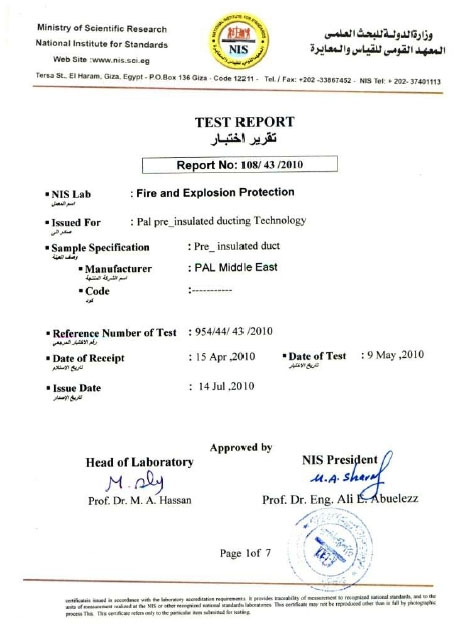

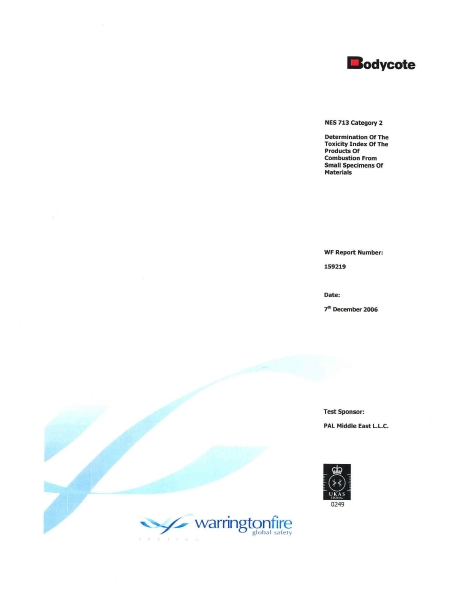

Toxicity Index

NES-713

IMO Resolution MSC 61 (67)

ASTM E 1678-97

Warringtonfire UK

Warringtonfire UK

National Institute for Standards - Egypt

5.7

Average S.O.D. <200

Class "1"

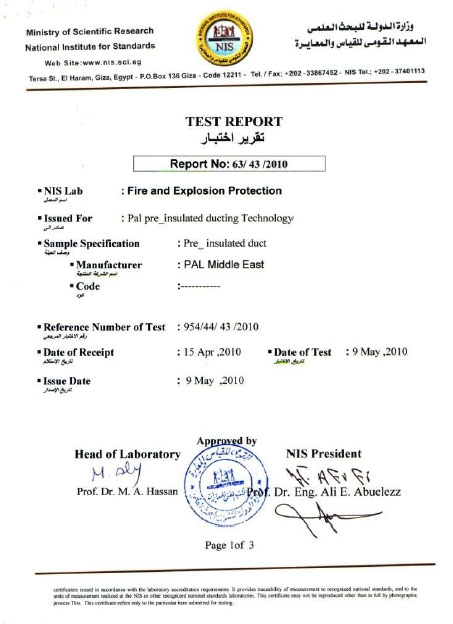

Smoke Intensity & Optical Density

ASTM E 662-06

National Institute for Standards - Egypt

Class "1"

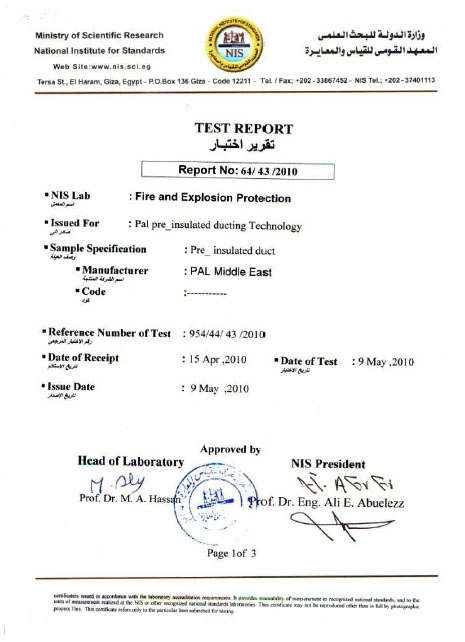

Smoke Toxicity

E 1678-97

National Institute for Standards - Egypt

Class "1"

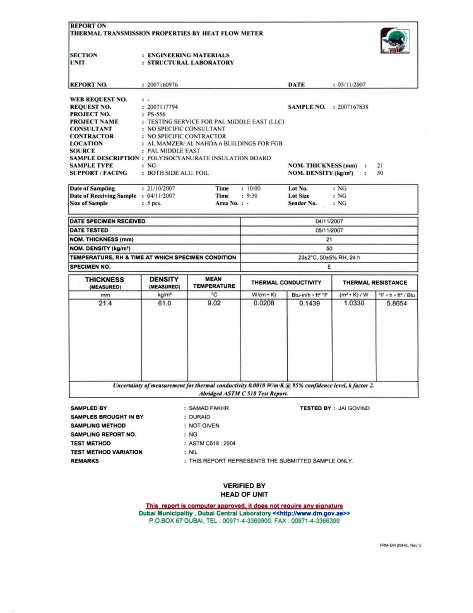

Thermal Conductivity-10mm

- 20mm

ASTM C518-10mm
ASTM C518 - 20mm

Dubai Municipality Laboratory

0.027 w/m.k. at 10oC

0.188 Btu w/m.k. ft2

0.020 w/m.k. at 10oC

0.169 Btu w/m.k. ft2

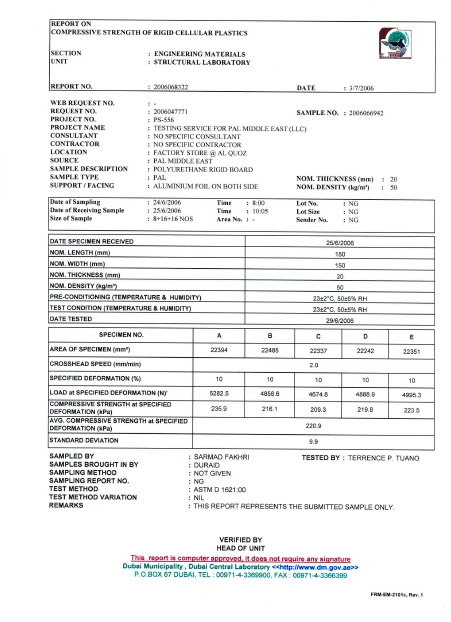

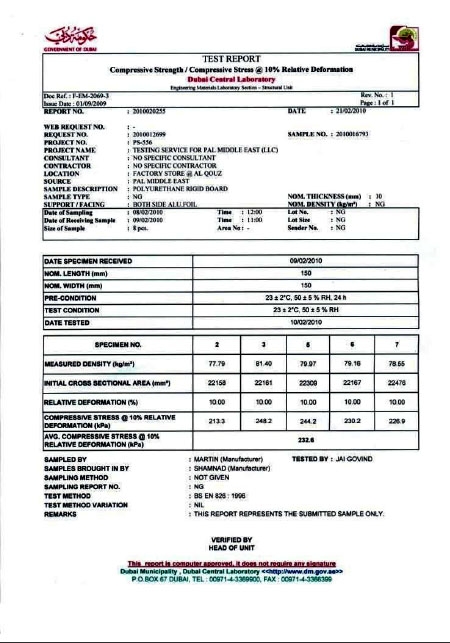

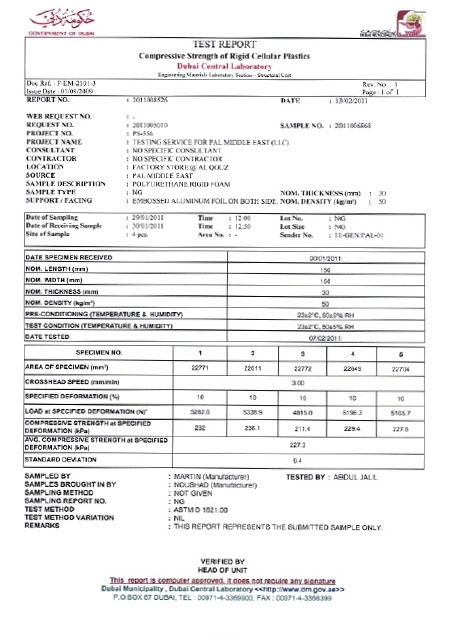

Compressive Strength

- 10mm

- 20mm

- 30mm

BS EN 826

ASTM D1621-20mm

ASTM D1621-30mm

Dubai Municipality Laboratory

232.6 kPa

220.9 kPa

227.3 kPa

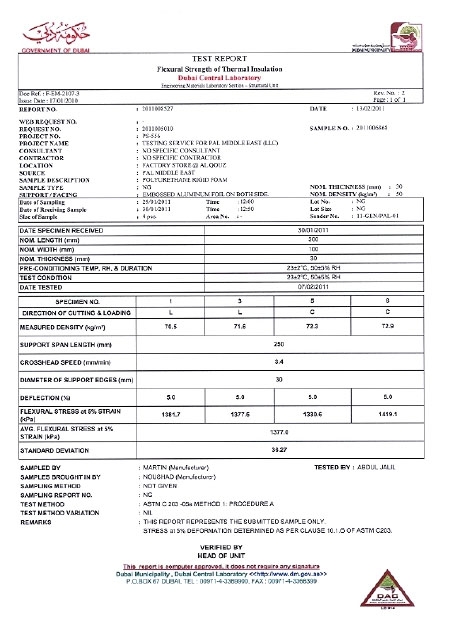

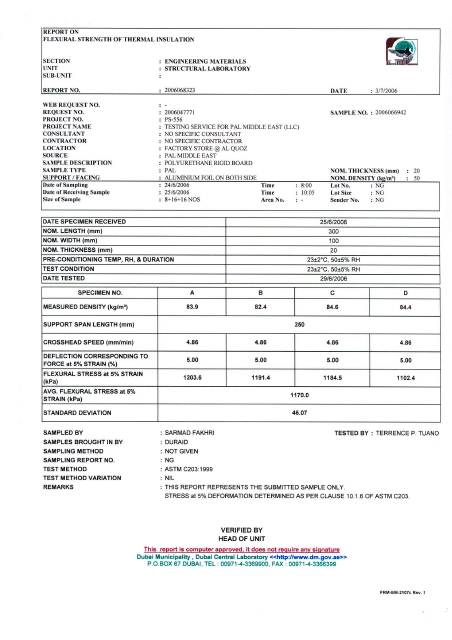

Flexural Strength

- 20mm

- 30mm

ASTM C203-20mm

ASTM C203-30mm

Dubai Municipality Laboratory

1170 kpa

1377 kPa

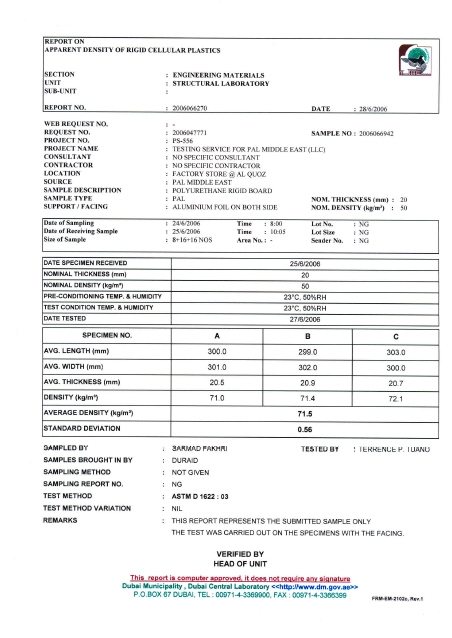

Panel Density -

ASTM D1622

Dubai Municipality Laboratory

71.5 kg/m3

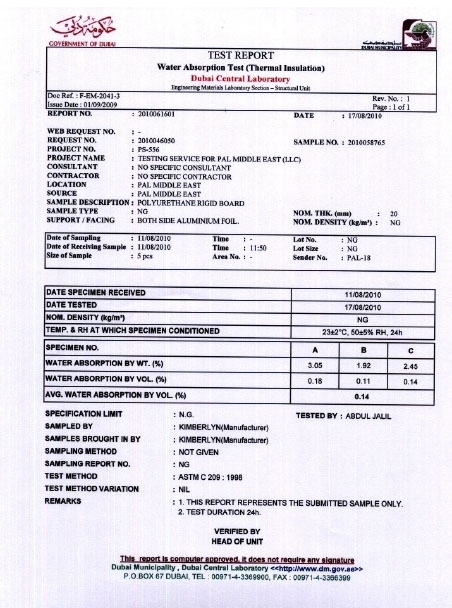

Water Absorption Level

ASTM C209

Dubai Municipality Laboratory

0.14%

24 hours immersion

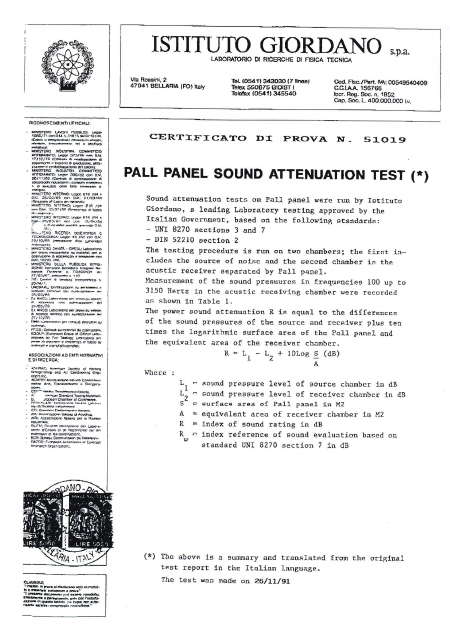

Sound Attenuation Test

UNI 8270

DIN 52210

Instituto Giordano

Average SRI (100-3150 Hz) 14.1

پال اکو

گواهینامه ها و گزارشات آزمایشگاهی بین المللی

DESCRIPTION

TEST METHOD

& STATEMENT

LABORATORY

CLASSIFICATION & RESULTS

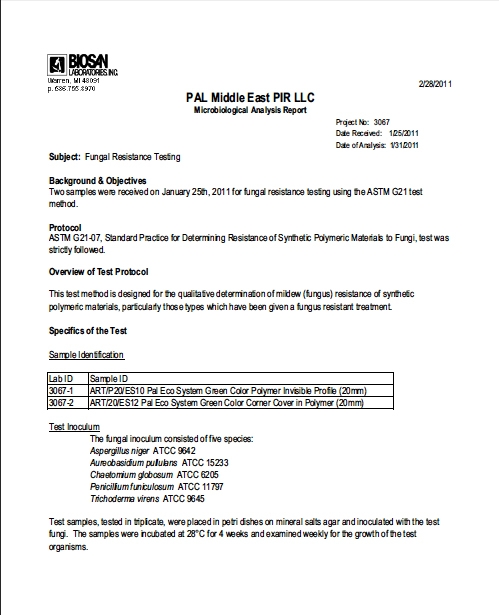

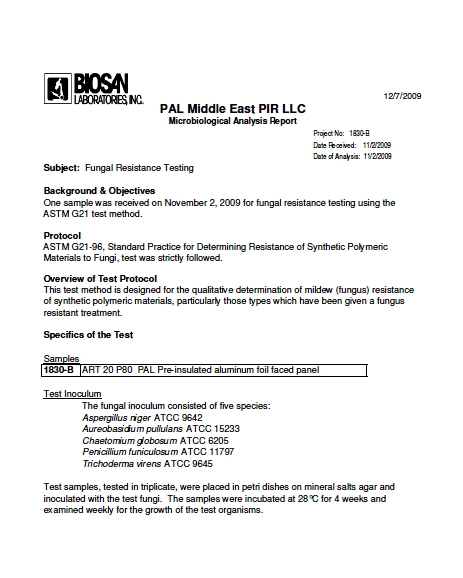

Bacterial and Fungal Growth Resistance

ASTM G21-Panel

ASTM G21-Accessories

Biosan Laboratories

Resistance to the following organisms:

  • Aspergillus niger
  • Aureobasidium pullulans
  • Chaetomium globosum
  • Penicillium funiculosum
  • Trichoderma virens

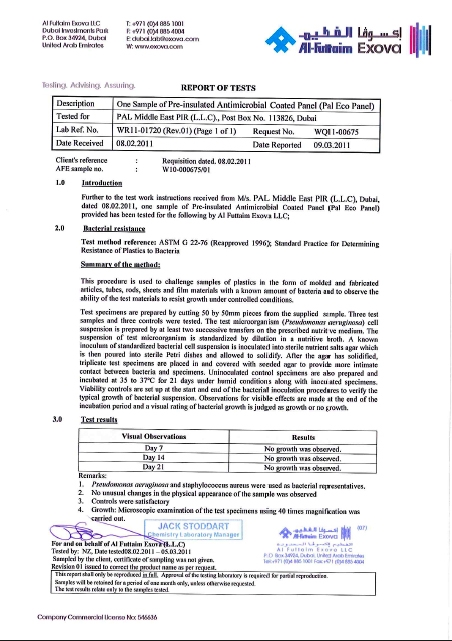

Bacterial and Fungal Growth Resistance

ASTM G22

Exova - Al Futtaim

No growth for the following organisms:

Pseudomonas aeruginosa

Staphylococcus aureus

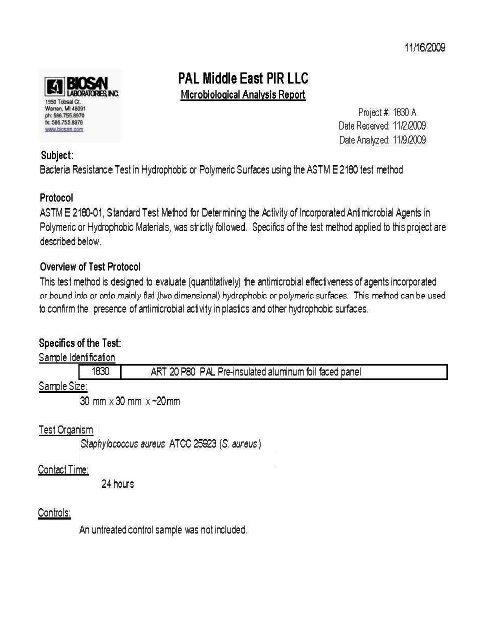

Bacterial Growth Resistance

ASTM E2180

Biosan Laboratories

Resistance to Staphylococcus aureus

Fire Propagation Index

BS 476 Part 6

Warringtonfire - UK

Class "0"

Surfaces Spread of Flame

BS 476 Part 7

Warringtonfire - UK

Class "1"

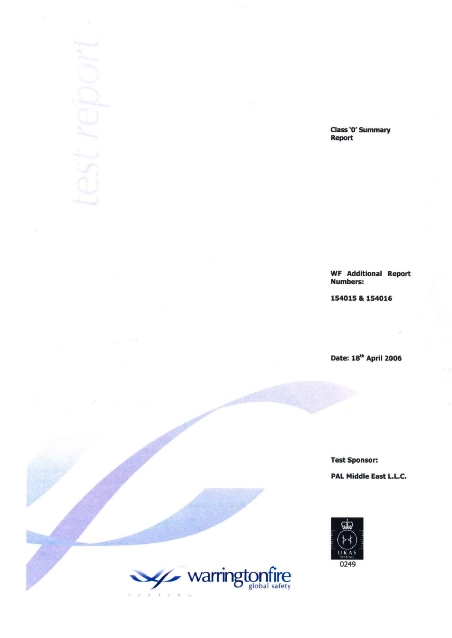

Certification of Product

Listing No. 016

BS 476 Part 6, 7

Warringtonfire -UK, Mideast Global Safety

Class "0"

Certificate of Factory Production Control and Product Labels

Certificate of Approval ME0016

Warringtonfire - UK, Mideast Global Safety



Epiradiateur Test

NFP 92-501

Warringtonfire - UK

(Ministere de l'Industrie et de la Decentralisation)

M1

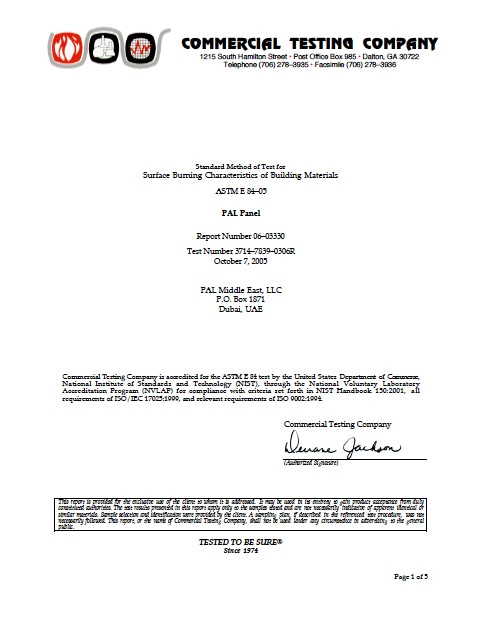

Flame Spread Index

ASTM E-84

NFPA 255

UL 723

NFPA 101 Life Safety Code

Commercial Testing Company - USA

Class "A"

Flame Spread Index

ASTM E-84

NFPA 255

UL 723

NFPA 101 Life Safety Code

Commercial Testing Company - USA

Class "A"

Smoke Developed Index

ASTM E-84

NFPA 255

UL 723

NFPA 101 Life Safety Code

Commercial Testing Company - USA

Class "A"

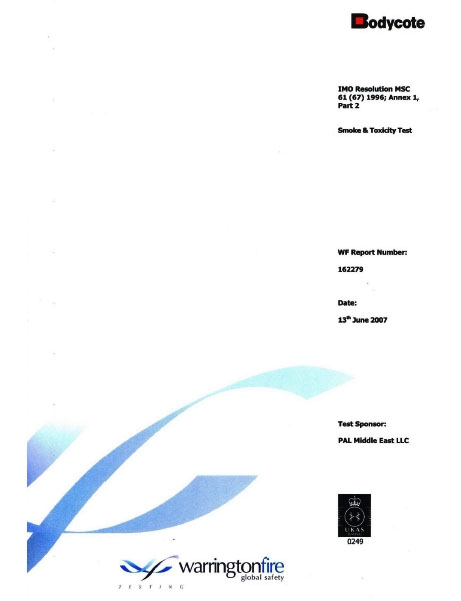

Toxicity Index

NES 713

IMO Resolution MSC 61 (67)

Warringtonfire UK

Warringtonfire UK

5.7

Average S.O.D. <200

Thermal Conductivity

ASTM C518

Dubai Municipality Laboratory

0.020 w/m.k.

0.169 Btu w/m.k. ft2

Compressive Strength

ASTM D1621

Dubai Municipality Laboratory

220.9 kpa

Flexural Strength

ASTM C203

Dubai Municipality Laboratory

1170 kpa

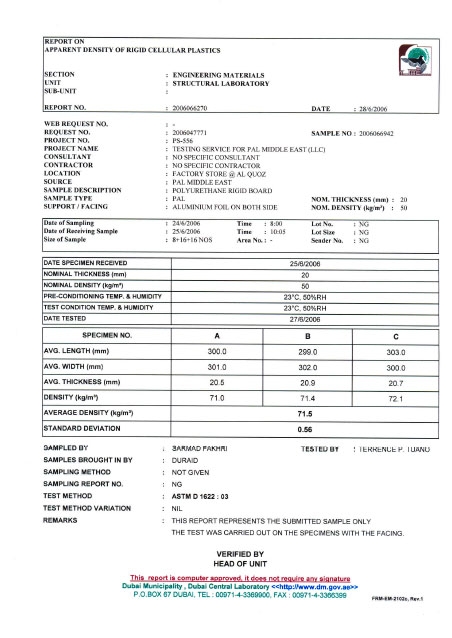

Panel Density

ASTM D1622

Dubai Municipality Laboratory

71.5 kg/m3

Water Absorption Level

ASTM C209

Dubai Municipality Laboratory

0.14%

(24 hours immersion)

Sound Attenuation Test

UNI 8270

DIN 52210

Instituto Giordano

Average SRI (100-3150 Hz) 14.1
